Connector Board CB38A 128-pin Light Director Board Kit

Connector Board CB38A 128-pin Light Director Board Kit, Afbeelding 3

Connector Board CB38A 128-pin Light Director Board Kit, Afbeelding 4

Connector Board CB38A 128-pin Light Director Board Kit, Afbeelding 5

Connector Board CB38A 128-pin Light Director Board Kit

Merk

CableEye

Productcode

768A

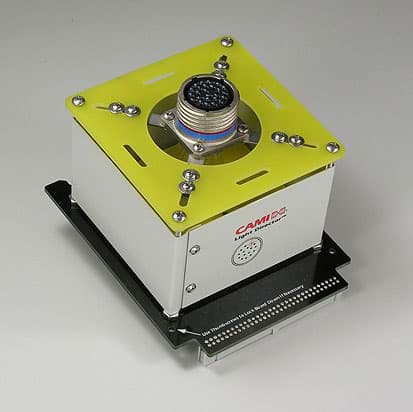

This board supports the mating piece for a circular or rectangular connector that you plan to assemble and is part of our Light Director™ system for guided connector assembly. Click here to learn how the Light Director™ system works. You may purchase the board as a kit of parts to be assembled in-house or have us do the board assembly for an additional charge as described below. Note: This item is sold as a single board with components. CB37A is intended for connectors of 64 cavities or fewer, order CB37A (Item 737A). For connectors up to 128 cavities, order CB38A (Item 738A). Each board includes sufficient light fibers to fully populate the board. To operate the Light Director guided assembly system, you will also need the following:

Any CableEye test and cable management system Model M3 or above.
Item 728, the AutoBuild™ Guided Assembly software option (software that permits you to program the assembly and operate the LED fibers). If your CableEye system already includes this software, you need not purchase it again.
Item 792, AT&T Natural Voices voice font (high-quality synthetic voice for speech instructions during assembly). If your computer is already provided with a high-quality voice font, you need not purchase this item.

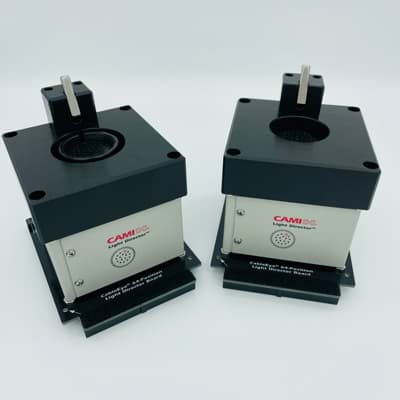

Item 610, optional assembly service for the CB37A board. Using customer-supplied cable schematic or pin assignment table, we will mount the interface fixturing and program your build procedure. Interface fixture not included. ZIF fixture purchased separately (Item 899C - Custom Interface). See photos of custom CB37A applications. You receive a turn-key system ready to use.

Algemeen

Merk

CableEye

Productcode

768A

Website fabrikant

GTIN

Type

CB38A

Toon alles van dit type

Serie

Connector Boards

Toon alles in deze serie

ETIM Klasse

Toebehoren voor meetinstrument

Toon alles in deze klasse

GLN

2220000165174

Land van herkomst

United States

Technische informatie

ETIM Klasse

Toebehoren voor meetinstrument

Serie

Connector Boards

Type

CB38A

Bestelinformatie

Artikelnummer

GCE768A00

GTIN

Productcode

768A

Bestelbaar

Voorraadartikel

Nee

Levertijd

14 dagen

Gebruikseenheid

stuk(s)

Besteleenheid

stuk(s)

Minimum / stapgrootte afname

1 / 1 stuk(s)

Verpakking

onverpakt

Afmetingen

0 x 0 x 0

Gewicht

0,000 kg

Brutoprijs

€ 530,00
